Linear feeder,inline rail with bowl feeder

DK Series

Linear feeder direct vibration feeder circular vibration automatic feeder vibrating,new arrivals  anti-clockwise vibratory linear feeder

Description

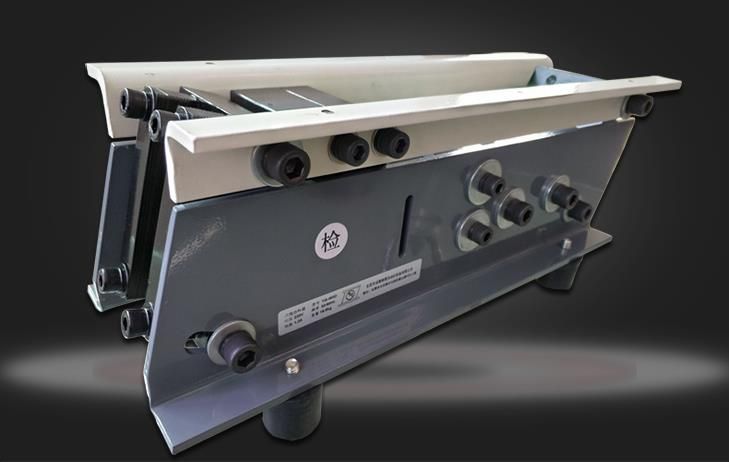

Linear Feeder -DK Series.jpg


Features

The width of the product conveying track is increased, and the driving is fast and stable by adjusting the amplitude angle, which is suitable for ultra-wide transportation of small and medium-sized components.


Installation precautions

A.  The material path should have sufficient rigidity, otherwise it will be difficult to form resonance.

B.  When the machine is in suspended support, the support beam must use stiffeners.

C.  When multiple direct-vibrators are mounted on the same support, the resulting interference creates noise and shifts the position of the workpiece. In such cases, a separate support should be provided for each directly oscillating machine.

D.  If the track or frame lacks stiffness, it will happen:

a)  The workpiece in transit will move back.

b)  The workpiece in the transfer jumps up and down and blocks before and after the feed channel.

c) The workpiece is slow and unstable when it leaves the channel groove.

d)The workpiece in transit produces a regular interference phenomenon.



Drawing

SW-350DK


SW-450DK


SW-550DK


SW-1000DK


Technical parameter
