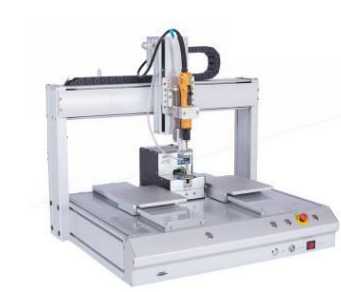

Adsorption/Blowing Screw Machine

Factory automatic screw locking machine air-blowing type adsorption type desktop type ,Blowing Single Platform Handheld Automatic Screw Locking Machine

Description


Blowing Screw Machine:

Features

1.    The machine is made of all-aluminum professional mold profiles and has a streamlined appearance.

2.    Single electric batch and double station, the product pick-and-place time is parallel with the lock time, and the efficiency is the highest.

3.    Support pre-process placement, post-process removal, and low-cost unattended operation.

4.    The speed is about 20% faster than the average level of equipment in the same industry, less than 1.3 s / screw.

5.    Scope of application: screw locks for various small electronic products, such as mobile phones, digital products, electronic products, etc.

Device parameters



Equipment size

Can be customized (standard size: 331, 441,   551)

Drive mode

Precision closed loop stepping

Positioning accuracy

± 0.02mm

Rail

HIWIN silver slide

Program storage

Support 200 products

Control System

High-end PLC+ touch screen control system /   embedded   motion controller

Screw treatment method

Vacuum suction / blowing type

Screw feeder

HIOS or Quicher

Electric batch

HIOS or KILEWS

Power supply

220VAC, 50Hz

Air source

0.4mpa-0.8mpa

Equipment weight

60kg
